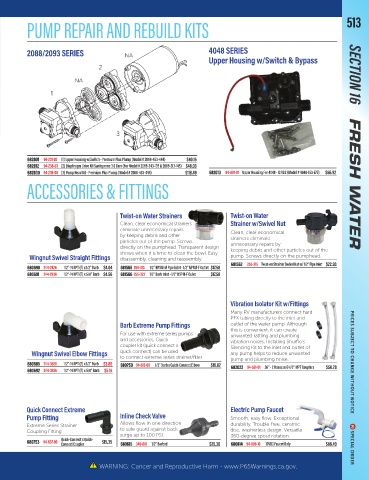

PUMP REPAIR AND REBUILD KITS 513

2088/2093 SERIES NA 4048 SERIES
Upper Housing w/Switch & Bypass
2

NA SECTION 16
1

3

682001 94-231-20 (1) Upper Housing w/Switch - Premium Plus Plump (Model # 2088-453-444) $40.16
682012 94-238-03 (2) Diaphragm Drive Kit Santoprene 3.0 Cam (For Model # 2088-343-135 & 2088-313-145) $48.03
682030 94-236-08 (3) Pump Head Kit - Premium Plus Plump (Model # 2088-453-444) $118.49 682013 94-801-01 Upper Housing For 4048 - 12 VDC (Model # 4048-153-E75) $56.92
ACCESSORIES & FITTINGS FRESH WATER

Twist-on Water Strainers Twist-on Water
Clean, clear economical strainers Strainer w/Swivel Nut
eliminate unnecessary repairs Clean, clear economical
by keeping debris and other strainers eliminate
particles out of the pump. Screws unnecessary repairs by
directly on the pumphead. Transparent design keeping debris and other particles out of the
shows when it is time to clean the bowl. Easy
Wingnut Swivel Straight Fittings disassembly, cleaning and reassembly. pump. Screws directly on the pumphead.
681562 255-315 Twist-on Strainer Swivel Nut w/ 1/2” Pipe Inlet $22.93
680690 244-2926 1/2”-14 NPT (F) x 1/2” Barb $4.04 681565 255-313 1/2” NPSM-M Pipe Inlet - 1/2” NPSM-F Outlet $17.58
680691 244-2936 1/2”-14 NPT (F) x 5/8” Barb $4.56 681566 255-323 1/2” Barb Inlet - 1/2” NSPM-F Oulet $17.58

Vibration Isolator Kit w/Fittings
Many RV manufacturers connect hard
PEX tubing directly to the inlet and
Barb Extreme Pump Fittings outlet of the water pump. Although
this is convenient, it can create
For use with extreme series pumps unwanted rattling and plumbing
and accessories. Quick vibration noises. Installing Shurflo's
coupler kit (quick connect x Silencing Kit to the inlet and outlet of
Wingnut Swivel Elbow Fittings quick connect) can be used any pump helps to reduce unwanted
to connect extreme series strainer/filter. pump and plumbing noise.
680685 244-3926 1/2”-14 NPT (F) x 1/2” Barb $3.80 680750 94-615-00 1/2” Barb x Quick-Connect Elbow $16.82 $50.78
680692 244-3936 1/2”-14 NPT (F) x 5/8” Barb $5.16 682022 94-591-01 36” - 2 Hoses w/2-1/2” MPT Couplers PRICES SUBJECT TO CHANGE WITHOUT NOTICE

Quick Connect Extreme Electric Pump Faucet
Pump Fitting Inline Check Valve Smooth, easy flow. Exceptional
Allows flow in one direction durability. Trouble-free, ceramic
Extreme Series Strainer
Coupling Fitting. to safe-guard against back disc, washerless design. Versatile
surge up to 100 PSI. 360-degree spout rotation.
Quick-Connect x Quick-
680753 94-637-00 Connect Coupler $15.35 680615 340-001 1/2” Barbed $25.30 680814 94-009-10 12VDC Faucet Only $86.49 SPECIAL ORDER
